DELKOR TURN OUT EGG

A turnout track fastening system for special track work on non-ballasted track forms

Including turnouts, diamond crossings and expansion switches.

BONDED BASEPLATE

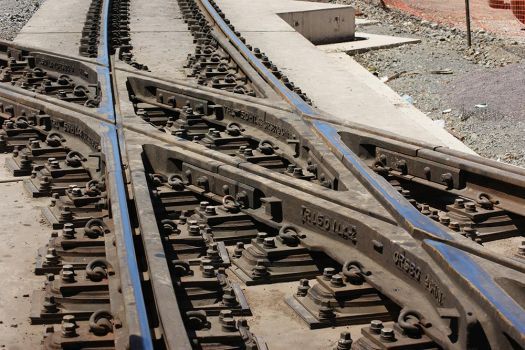

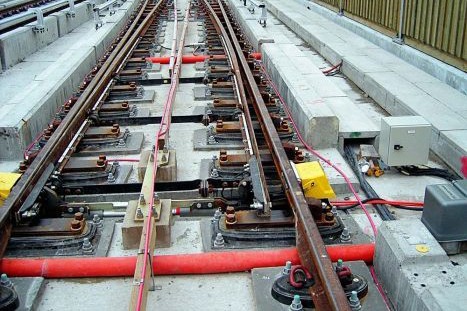

Delkor Rail’s Eggs for Turnouts were developed specifically for the direct fixation of turnouts, crossovers, diamond crossings and expansion switches on ballastless track forms to provide high vibration attenuation. First used in Cologne, Germany in the late 1970’s the core design remains the same today.

optimum vibration and noise reduction

The concept was for discrete elastomeric fasteners to which the turnout baseplates can be simply fixed by means of bolts. Turnouts that are designed with bolt down base plates, can be directly fixed to Eggs for Turnouts using the same base plates. A retrofit option is also available where by the Eggs can be matched drilled to the existing turnout baseplates.
